Products

SHCM's product portfolio primarily includes:Elastic Metal-Plastic Bearings and Assemblies, Self-Lubricating Spherical Plain Bearings and Assemblies, Bimetal Self-Lubricating Bearings and Assemblies, Copper Alloy Inlaid Self-Lubricating Bearings and Assemblies, Composite Material Bearings for Nuclear Main Pump Motors, among others.
With nearly three decades of dedicated industry experience, our products have been selected for numerous national key engineering projects, such as: The Three Gorges Project, Gezhouba Project, Ningbo Beilun Port, State Nuclear Power Technology Corporation (SNPTC), and others.

FZB03 Elastic Metal-Plastic Bearings and Assemblies

This product represents a new generation of composite bearings, formed by securely bonding a low-friction, high-wear-resistant self-lubricating composite material—produced through sintering and plasticizing via compression molding of metal wire elastic pads and reinforced modified PTFE—to steel backing base various geometric shapes using soldering technology.

Water-Lubricated Bearings and Assemblies

This product is composed of a high-wear-resistant, water-lubricated composite material. This material is formed by combining high-strength fibers and a high-wear-resistant special engineering plastic-reinmodified polymer matrix with a metal wire mesh pad. It is then reliably bonded to steel base of various geometric shapes using a vacuum tin-impregnated soldering process.

FZB Series Self-Lubricating Spherical Plain Bearings and Assemblies

A self-lubricating spherical plain bearing is a type of sliding bearing designed for spatial movement, capable of rotation or oscillation in any direction. The FZB series bearings consist of an inner ring and an outer ring.

FZB06 Series Self-Lubricating Bearings and Assemblies

This bearing is a composite component featuring a base material of low-carbon cold-rolled steel, stainless steel, or copper plate. The working surface is a sintered bronze alloy layer impregnated with solid lubricants. The product represents a significant upgrade from the previous FZ-6 model. Through optimization of the surface material composition and the sintering manufacturing process, its performance metrics now meet advanced international standards.

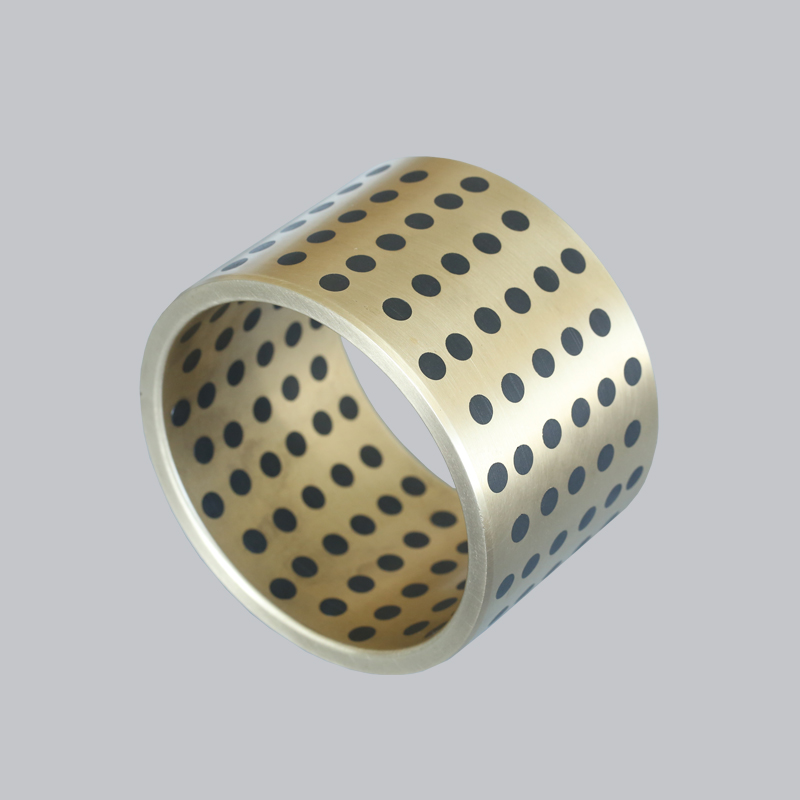

FZB05 Series Copper Alloy Inlaid Self-Lubricating Bearings and Assemblies

The FZB05 bearing is engineered with a high-strength copper alloy as its base matrix. A key feature is a uniform array of through-holes or blind holes machined into this base, which are filled with solid lubricant. Additionally, a solid lubricant film is applied to the bearing's friction surface to aid in the initial run-in period.

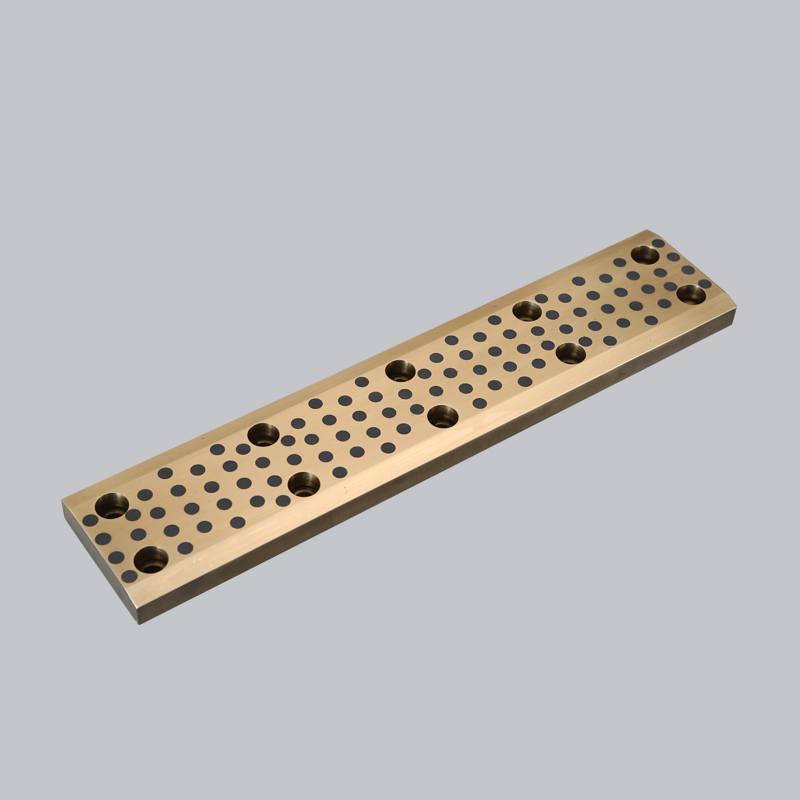

FZB06S Series Self-lubricating Slide shoes and Assemblies

This product is a composite bearing comprising a base made from low-carbon cold-rolled steel, stainless steel, or copper plate. The friction surface is a sintered bronze alloy layer impregnated with solid lubricants.

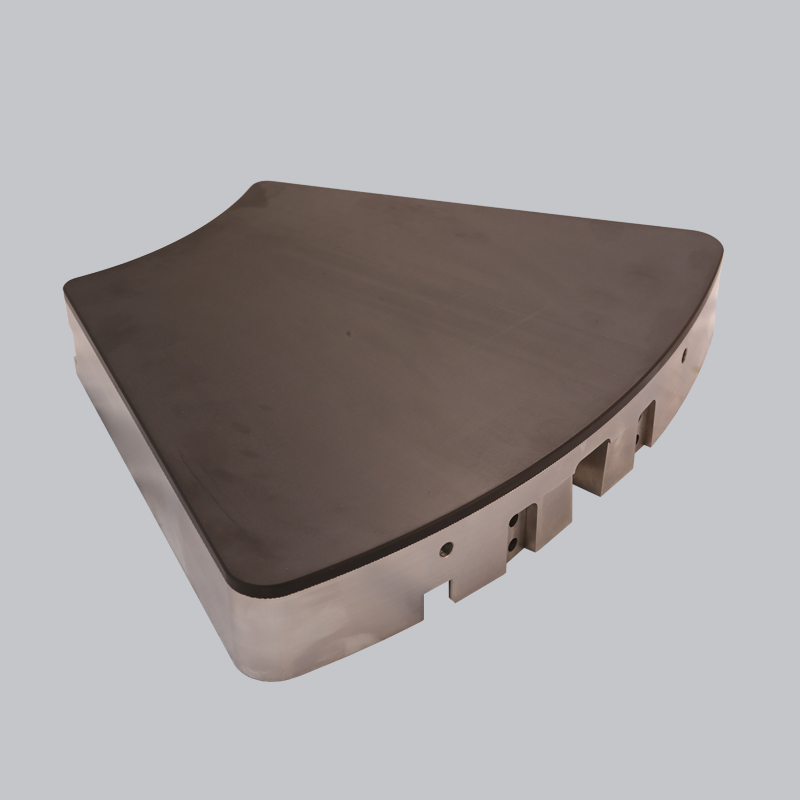

FZB11 Series Enhanced High-Performance Special Self-Lubricating Bearings and Assemblies

The product utilizes a stainless steel base. Both its upper and lower surfaces are integrally bonded with a specially engineered, high-performance modified polymer, each serving a distinct function: the upper surface acts as the low-friction working layer, while the lower surface serves as an effective thermal barrier.The composite interface between the specialized engineering plastic and the stainless steel backing is designed with a uniquely interlocking geometric structure.

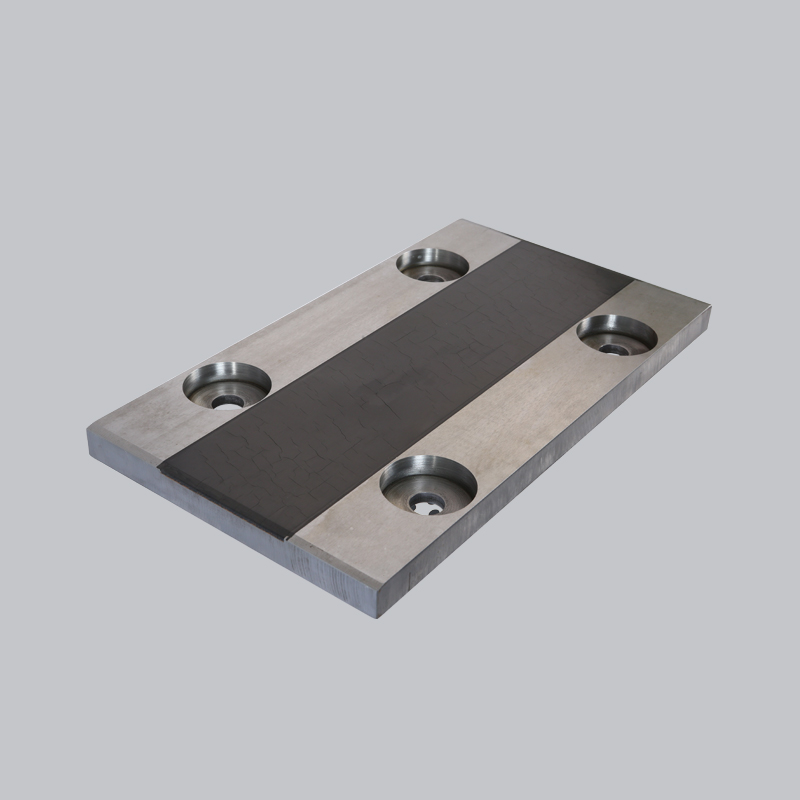

FZB08 Series Slide shoes and Assemblies

The slide shoe is constructed with a four-layer composite structure: a surface polymer layer, a bronze wire helix matrix, spherical bronze powder, and a steel base. The composite material employs a dual-binding medium of bronze spheres and bronze helices, which significantly enhances the bonding strength between the copper and polymer layers. A thickened surface friction layer further extends the product's service life.

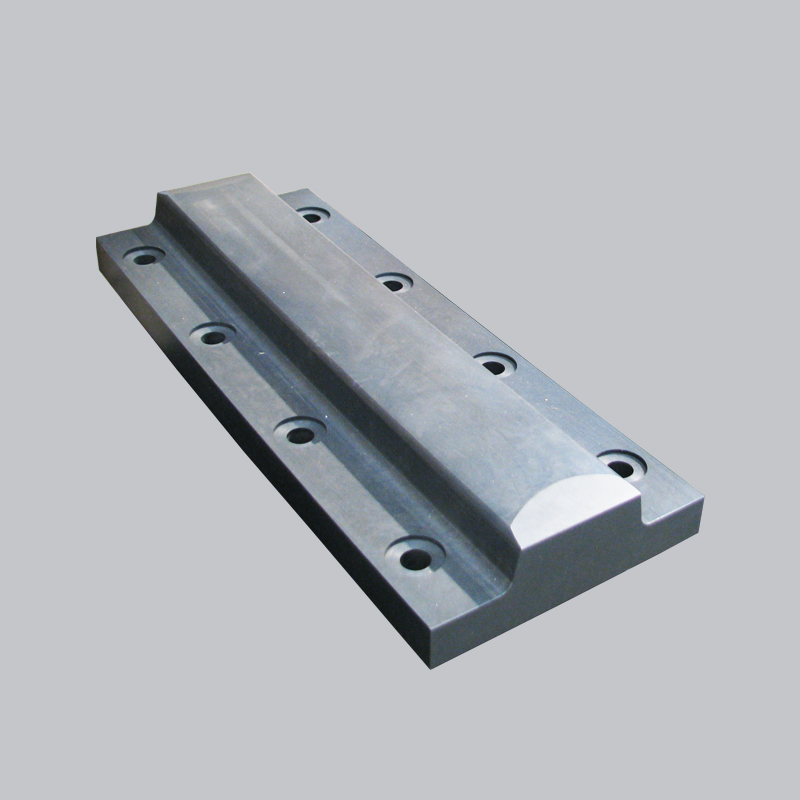

FZB-MC Series Engineering Plastic Alloy Self-Lubricating Slide Shoe and Assemblies

The FZB-MC Series Engineering Plastic Alloy Self-Lubricating Slide Shoe is a new-generation self-lubricating bearing product developed through the enhanced modification of monomer-cast nylon (MC nylon) with rare earth elements and various additives. This material innovation successfully overcomes the traditional drawbacks of the base material, such as low load capacity, poor dimensional stability, high water absorption, and unstable friction coefficient. By applying modern polymer material mo

FZB-MC Series Engineering Plastic Alloy Self-Lubricating Spherical Plain Bearing and Assemblies

This product is widely used in various bearing applications within water conservancy facilities, including: the bottom hinge bearing for flap gates (flap gate trunnion bearing), the support bearing for hydraulic hoists, the fixed wheel bearing for plane (sluice) gates, other bearing positions on hydraulic structures.

FZB08 Series High-Strength Steel-Based Copper-Plastic Self-Lubricating Bearings

The FZB08 high-strength steel-based copper-plastic self-lubricating bearing is a high-performance new-generation sliding bearing. It is constructed with a four-layer composite structure consisting of a steel base, spherical bronze powder, a bronze wire helix, and a surface polymer layer.

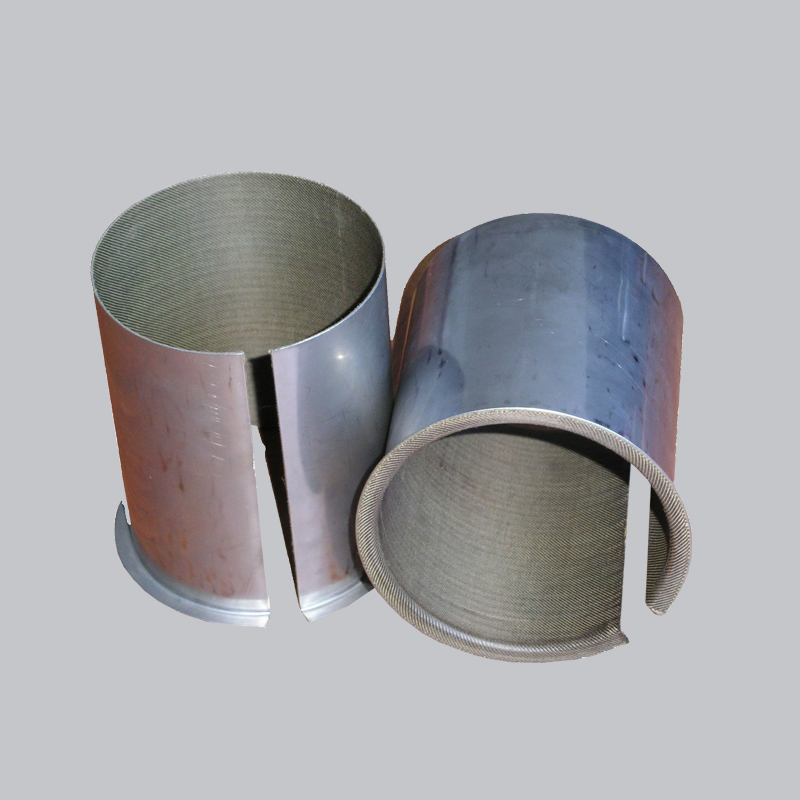

FZB09 Series PTFE Fiber Steel-Based Self-Lubricating Bearings

The friction surface material of the FZB09 PTFE fiber steel-based self-lubricating bearing is a woven fabric made from polytetrafluoroethylene (PTFE) fibers. The base material is a stainless steel.

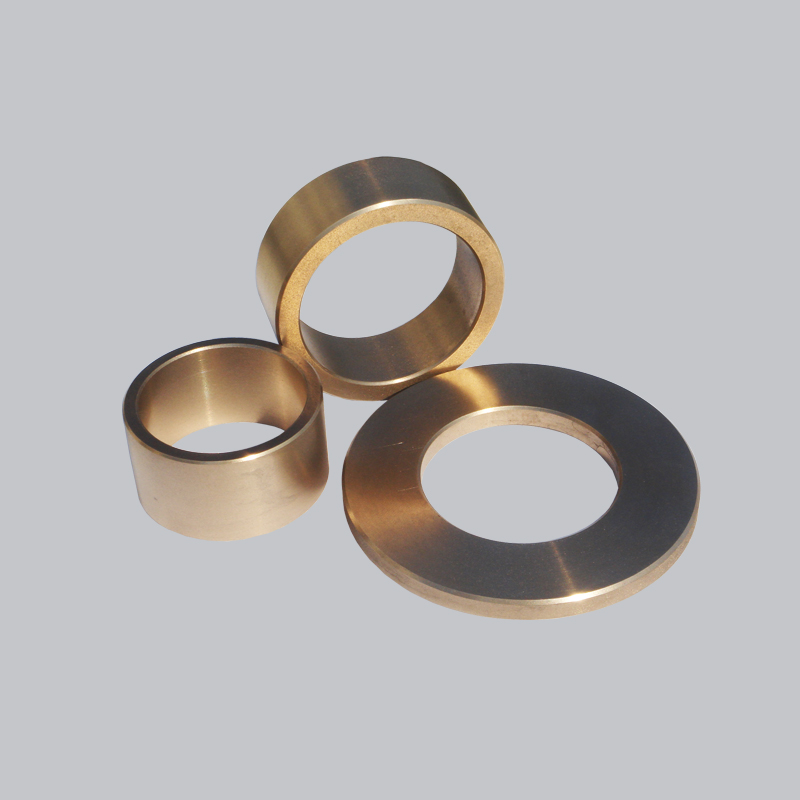

FZB12 Series High-Strength Self-Lubricating Bearings and Assemblies

This product is a high-strength, high-wear-resistant, low-friction powder metallurgy bearing. It is manufactured using advanced powder metallurgy technology, where metal powders and solid lubricants are processed through a series of steps including compaction, sintering, and finishing to form the final component.Unlike traditional oil-impregnated powder metallurgy bearings, it contains a high concentration of solid lubricants, which are uniformly distributed throughout the entire powder metallur
